Editor's Desk

By Steve Litt
Last month's Linux Productivity Magazine explained the Curses command line interface extensions, including string placement, keystroke acquisition, colors, windows, and even menus. This month's issue builds on last months issue by demonstrating the use of Curses to build picklists and forms. Just for fun, there's an article showing how to create a maze runner program that runs mazes designed in an editor.

Perhaps the most notable facet of this Linux Productivity Magazine issue is its exploration of Data Driven Design -- the placement of knowledge in data instead of code, thereby making the code versatile, reusable and maintainable. These principles are demonstrated in one of the picklist articles.

This month's Linux Productivity Magazine discusses the philosophy of Data Driven Design, illustrated by the story of my long journey to its knowledge.

s how to use use Curses to create non-gui menus and picklists. If you're a Linux or free software user, of if you just want to learn more about Curses or Data Driven Design, this is your magazine. Enjoy!

Steve Litt is the author of Samba Unleashed.   Steve can be reached at his email address.

Help Publicize Linux Productivity Magazine

By Steve Litt
Loyal readers, I need your help.

For months I've publicized Linux Productivity Magazine, expanding it from a new magazine to a mainstay read by thousands. There's a limit to what I can do alone, but if you take one minute to help, the possibilities are boundless.

If you like this magazine, please report it to one of the Linux magazines. Tell them the URL, why you like it, and ask them to link to it.

I report it to them, but they don't take it very seriously when an author blows his own horn. When a hundred readers report the magazine, they'll sit up and take notice.

Reporting is simple enough. Just click on one of these links, and report the magazine. It will take less than 5 minutes.

News Mag
 		Submission URL or Email address
 		Comments
Slashdot
 http://slashdot.org/submit.pl
 Just fill in the short form.
LinuxToday
 http://linuxtoday.com/contribute.php3
 Just fill in the short form.
Linux Weekly News
 lwn@lwn.net
 Just tell them the URL, why you like it.
NewsForge
 webmaster@linux.com
 Just tell them the URL, why you like it.
VarLinux
 http://www.varlinux.org/vlox/html/modules/news/submit.php
 Just fill in the short form.
LinuxInsider.Com,
Newsfactor Network
 http://www.newsfactor.com/perl/contact_form.pl?to=contact
 Just tell them the URL, why you like it.
The Linux Knowledge Portal
 webmaster@linux-knowledge-portal.org
 Just tell them the URL, why you like it.
OS News
 http://www.osnews.com/submit.php
 Just tell them the URL, why you like it.
DesktopLinux
 http://www.desktoplinux.com/cgi-bin/news_post.cgi
 Only for LPM issues involving the Linux desktop, not for programming or server issues.

If you really like this magazine, please take 5 minutes to help bring it to a wider audience. Submit it to one of the preceding sites.
Steve Litt is the founder and acting president of Greater Orlando Linux User Group (GoLUG).   Steve can be reached at his email address.

GNU/Linux, open source and free software

By Steve Litt
Linux is a kernel. The operating system often described as "Linux" is that kernel combined with software from many different sources. One of the most prominent, and oldest of those sources, is the GNU project.

"GNU/Linux" is probably the most accurate moniker one can give to this operating system. Please be aware that in all of Troubleshooters.Com, when I say "Linux" I really mean "GNU/Linux". I completely believe that without the GNU project, without the GNU Manifesto and the GNU/GPL license it spawned, the operating system the press calls "Linux" never would have happened.

I'm part of the press and there are times when it's easier to say "Linux" than explain to certain audiences that "GNU/Linux" is the same as what the press calls "Linux". So I abbreviate. Additionally, I abbreviate in the same way one might abbreviate the name of a multi-partner law firm. But make no mistake about it. In any article in Troubleshooting Professional Magazine, in the whole of Troubleshooters.Com, and even in the technical books I write, when I say "Linux", I mean "GNU/Linux".

There are those who think FSF is making too big a deal of this. Nothing could be farther from the truth. The GNU General Public License, combined with Richard Stallman's GNU Manifesto and the resulting GNU-GPL License, are the only reason we can enjoy this wonderful alternative to proprietary operating systems, and the only reason proprietary operating systems aren't even more flaky than they are now.

For practical purposes, the license requirements of "free software" and "open source" are almost identical. Generally speaking, a license that complies with one complies with the other. The difference between these two is a difference in philosophy. The "free software" crowd believes the most important aspect is freedom. The "open source" crowd believes the most important aspect is the practical marketplace advantage that freedom produces.

I think they're both right. I wouldn't use the software without the freedom guaranteeing me the right to improve the software, and the guarantee that my improvements will not later be withheld from me. Freedom is essential. And so are the practical benefits. Because tens of thousands of programmers feel the way I do, huge amounts of free software/open source is available, and its quality exceeds that of most proprietary software.

In summary, I use the terms "Linux" and "GNU/Linux" interchangably, with the former being an abbreviation for the latter. I usually use the terms "free software" and "open source" interchangably, as from a licensing perspective they're very similar. Occasionally I'll prefer one or the other depending if I'm writing about freedom, or business advantage.

Steve Litt is the author of Troubleshooting Techniques of the Successful Technologist.   Steve can be reached at his email address.

Picklists

By Steve Litt
A good data input and processing application presents a list of relevent records to the user, so the user can pick which record to process, edit, delete or whatever. This list of records is called a picklist.

The main difference between picklists and menus is that picklists usually have hundreds or thousands of lines. Scrolling is essential. They must be in an order discernable to the user, so that the user can spell out the first few characters of the desired record and navigate directly to it. For instance, if the user wants Milton Anderson, he can type in "Ande" and be close enough to use the page down key and the downarrow key to find the exact record.

Another difference is that the items on menus are typically (but not always) defined at compile time, whereas picklists are always data driven lists obtained at runtime. Menus can be programmed, and frequently are, with a magic number for a maximum number of items. Picklists cannot be so programmed, because you'll always find a data set with more items.

This presents a small problem with Curses. In our preceding programs we stored choice text in an array, but we could have just as easily used a file or SQL statement. Our first task would be to find the number of records, with an SQL count statement, or  a quick walkthrough with fgets(), or even the Linux wc command. Armed with that number, we allocate an array of that number plus one ITEM pointers. We can then loop through the file or data set, allocating an ITEM pointer for each, and assigning a relevant string and other information to each.

BUT...

What if we perform a record add directly from the picklist. There's no room for the new item, because the item list is an  array of pointers, not a linked list of pointers. Therefore, you can't just append, prepend or insert. You need to enlarge the array, and you need to insert the new item where appropriate, moving everything after it down one.

Ugh!

Perhaps the array could be created oversize by some magic number, like 100. In this way, every time something's added, there's a check to see whether the array size is exceeded. If not, it's as simple as a binary search and a shift. If the array size is exceeded, a new array is allocated, oversized by the same magic number, pointers are transferred from the old item list to the new one, and the app continues.

Fast but ugly. It's not ugly from a memory standpoint. Even with 8 byte pointers (enough to handle terrarecords), 1000 pointers would be only 8K of RAM. The problem is that the check must be made every time, and at the very least things must be shifted, and the MENU somehow refreshed.

Worse yet, when the array size is exceeded, the current ITEM ** must be stored in a temp ITEM **, the original ITEM ** must be reallocated with the larger capacity, the list of items must be copied from the temporary ITEM** to the original one, with provisions for the shift for the new record, and then the MENU must be refreshed.

Ugh!

It's enough to tempt one to just refresh from the database upon return from an insert or delete. Trouble is, the extra SQL retrieves would bring the enterprise DBMS to its knees if the app is heavily used.

Unlike a little menu, we must enable Home to go to the top, End to go to the bottom, PageUp and PageDown to go up or down a screenful. Up to six different functionalities must be enabled, together with keystrokes to enable them. And please remember, that due to pattern searching, those keystrokes cannot be simple letters, because those letters would be added to the search pattern. Here are the five possible functionalities of a picklist:
  1. Pick
  2. Add
  3. Change
  4. Delete
  5. Bail
  6. Refresh

Functionality
 Typical keysrokes
 What it does
Pick
 Enter, Ctrl+P
 Terminates the picklist and returns to the calling subroutine with the unique identifier of the item that was highlighted when the user chose
Add
 Insert, Ctrl+A
 The picklist calls a blank form to create a new item in the list or table under consideration. When the user terminates that form, if the user did not bail, then the newly created record is visible on the picklist
Change
 Enter, Ctrl+C, Ctrl+M, Ctrl+E
 Change, modify, edit are synonyms. The picklist calls a form, with the current contents of the highlighted record already in place. The user can then modify the record's data, and submit it to the database or file, returning afterward back to the calling picklist.
Delete
 Del, Backspace, Ctrl+D
 The picklist calls a read only form containing data from the highlighted record. The user can then choose to continue with the deletion or bail from the deletion. Either way control returns to the picklist, but if the user bails, the record is not deleted from the database.
Bail
 Esc
 Terminate the picklist, and return to the calling subroutine with an identifier indicating that the user declined to choose. The calling subroutine typically then acts as if the user had never gone into the picklist.
Refresh
 Ctrl+L
 Refresh the list of records on the picklist. Some picklist tools are incapable of putting a newly added record into the list, so the user must refresh the list. This is typically a slow operation, so it's better if the picklist and its associated routines refreshes the list. However, in a multiuser environment, refreshing might still be necessary because other users might have inserted or deleted records.

Picklists are typically called in one of two situations:
  1. Called from a menu to choose a record on which to operate
  2. Called from a field on a form to choose that field's contents from a list.
#1 is straightforward enough, but #2 can get more involved. What if upon entering a picklist from a form's field, the user finds that the desired record is not yet in the database. In many cases, the best policy is for the user to add that new record, and then choose it to fill the field.

Or, when the user is about to choose the record, she notices that the record contains bad information. In that case, often the best policy is to let the user modify the record before choosing it to fill the field.

Both these scenarios require two different choice modes in the picklist:
  1. Choose and return to the form
  2. Choose and drill down further into the data
For simplicity and speed, we like to assign the Enter key to the concept of choosing. Trouble is, on picklists with two choice modes, which will be assigned the Enter key? Typically this depends on which is more likely. Complicating this is the fact that the same picklist could be called both from a menu and from a field. This is common.

What this means is that key choices for these functionalities must be configurable at runtime for each use of a particular picklist. The key choices must be passed to whatever function runs the picklist.
Steve Litt is the author of Rapid Learning: Secret Weapon of the Successful Technologist.   Steve can be reached at his email address.

A Simple Picklist

By Steve Litt
The Curses tools have no provision for a picklist. However, they do have provisions for a scrolling menu, which is the same thing. Referring to last month's discussion of menus, when creating a scrolling menu, always keep the following rules in mind:
The following is the simple picklist program:

Data
Program

Anderson
Barnett
Carter
Charles
Childers
Colby
Daniels
Ellison
Franco
Goldstein
Heller
Ignacius
Johnson
Kelly
Lewis
Martin
Nunez
Osbourne
Peterson
Quincy
Rodriguez
Stevens
Thomas
Ullman
Victor
Watkins
Xavier
Yamaha
Zelinski

#include <curses.h>	/* Necessary for all Curses programs */
#include <menu.h>	/* Gives you menuing capabilities */
#include <stdlib.h>	/* Needed for calloc() */
#include <string.h>	/* Needed for strlen() and friends */

#define WHITEONRED 1
#define WHITEONBLUE 2
#define WHITEONBLACK 3
#define BLACKONWHITE 4
#define REDONWHITE 5


void wCenterTitle(WINDOW *pwin, const char * title)
	{
	int x, maxy, maxx, stringsize;
	getmaxyx(pwin, maxy, maxx);
	stringsize = 4 + strlen(title);
	x = (maxx - stringsize)/2;
	mvwaddch(pwin, 0, x, ACS_RTEE);
	waddch(pwin, ' ');
	waddstr(pwin, title);
	waddch(pwin, ' ');
	waddch(pwin, ACS_LTEE);
	}

void wclrscr(WINDOW * pwin)
	{
	int y, x, maxy, maxx;
	getmaxyx(pwin, maxy, maxx);
	for(y=0; y < maxy; y++)
		for(x=0; x < maxx; x++)
			mvwaddch(pwin, y, x, ' ');
	}

bool initColors()
	{
	if(has_colors())
		{
		start_color();
		init_pair(WHITEONRED, COLOR_WHITE, COLOR_RED);
		init_pair(WHITEONBLUE, COLOR_WHITE, COLOR_BLUE);
		init_pair(REDONWHITE, COLOR_RED, COLOR_WHITE);
		return(true);
		}
	else
		return(false);
	}


int runMenu(
		WINDOW *wParent,
		int height,
		int width,
		int y,
		int x,
		char *choices[]
		)
	{
	int c;			/* key pressed */
	ITEM **my_items;	/* list of items on this menu */
	MENU *my_menu;		/* the menu structure */

	WINDOW *wUI;		/* window on which the user
					interacts with the menu */
	WINDOW *wBorder;	/* window containing the wUI window
					and the border and title */

        int n_choices;		/* number of items on menu */
        int ssChoice;		/* subscript to run around the choices array */
	int my_choice = -1;	/* the zero based numeric user choice */

	/* CALCULATE NUMBER OF MENU CHOICES */
	for(n_choices=0; choices[n_choices]; n_choices++);

	/* ALLOCATE ITEM ARRAY AND INDIVIDUAL ITEMS */
        my_items = (ITEM **)calloc(n_choices + 1, sizeof(ITEM *));
        for(ssChoice = 0; ssChoice < n_choices; ++ssChoice)
                my_items[ssChoice] = new_item(choices[ssChoice], NULL);
	my_items[n_choices] = (ITEM *)NULL;

	/* CREATE THE MENU STRUCTURE */
	my_menu = new_menu((ITEM **)my_items);

	/* PUT > TO THE LEFT OF HIGHLIGHTED ITEM */
	set_menu_mark(my_menu, "> ");

	/* SET UP WINDOW FOR MENU'S BORDER */
	wBorder = newwin(height, width, y, x);
	wattrset(wBorder, COLOR_PAIR(WHITEONRED) | WA_BOLD);
	wclrscr(wBorder);
	box(wBorder, 0, 0);
	wCenterTitle(wBorder, "Choose one");

	/* SET UP WINDOW FOR THE MENU'S USER INTERFACE */
	wUI = derwin(wBorder, height-2, width-2, 2, 2);

	/* ASSOCIATE THESE WINDOWS WITH THE MENU */
	set_menu_win(my_menu, wBorder);
	set_menu_sub(my_menu, wUI);
	set_menu_format(my_menu, 12, 1);

	/* MATCH MENU'S COLORS TO THAT OF ITS WINDOWS */
	set_menu_fore(my_menu, COLOR_PAIR(REDONWHITE));
	set_menu_back(my_menu, COLOR_PAIR(WHITEONRED) | WA_BOLD);

	/* SET UP AN ENVIRONMENT CONDUCIVE TO MENUING */
	keypad(wUI, TRUE);	/* enable detection of function keys */
	noecho();		/* user keystrokes don't echo */
	curs_set(0);		/* make cursor invisible */

	/* DISPLAY THE MENU */
	post_menu(my_menu);

	/* REFRESH THE BORDER WINDOW PRIOR TO ACCEPTING USER INTERACTION */
	touchwin(wBorder);
	wrefresh(wBorder);

	/* HANDLE USER KEYSTROKES */
	while(my_choice == -1)
		{
		touchwin(wUI);	/* refresh prior to getch() */
		wrefresh(wUI); 	/* refresh prior to getch() */
		c = getch();
		switch(c)
			{
			case KEY_DOWN:
				menu_driver(my_menu, REQ_DOWN_ITEM);
				break;
			case KEY_UP:
				menu_driver(my_menu, REQ_UP_ITEM);
				break;
			case 10:	/* Enter */
				my_choice = item_index(current_item(my_menu));

				/* RESET CURSOR IN CASE MORE SELECTION IS NECESSARY */
				pos_menu_cursor(my_menu);
				break;
			}
		}

	/* FREE ALL ALLOCATED MENU AND ITEM RESOURCES */
	unpost_menu(my_menu);
        for(ssChoice = 0; ssChoice < n_choices; ++ssChoice)
                free_item(my_items[ssChoice]);
	free_menu(my_menu);

	/* DESTROY MENU WINDOW AND BORDER WINDOWS */
	delwin(wUI);
	delwin(wBorder);

	/* UNDO MENU SPECIFIC ENVIRONMENT */
	curs_set(1);			/* make cursor visible again */

	/* REPAINT THE CALLING SCREEN IN PREPARATION FOR RETURN */
	touchwin(wParent);
	wrefresh(wParent);

	/* RETURN THE ZERO BASED NUMERIC USER CHOICE */
	return(my_choice);
	}


int main()
	{
	char *choices[] =			/* The menu choices */
			{
			"Anderson",
			"Barnett",
			"Carter",
			"Charles",
			"Childers",
			"Colby",
			"Daniels",
			"Ellison",
			"Franco",
			"Goldstein",
			"Heller",
			"Ignacius",
			"Johnson",
			"Kelly",
			"Lewis",
			"Martin",
			"Nunez",
			"Osbourne",
			"Peterson",
			"Quincy",
			"Rodriguez",
			"Stevens",
			"Thomas",
			"Ullman",
			"Victor",
			"Watkins",
			"Xavier",
			"Yamaha",
			"Zelinski",
			NULL
			};
	int choiceno;

	initscr();		/* start ncurses */
        cbreak();		/* immediately acquire each keystroke */
        noecho();		/* do not echo user keystrokes */
	keypad(stdscr, TRUE);	/* enable detection of function keys */
	initColors();		/* enable colors and initialize pairs */

	/* SET UP AND PAINT STANDARD SCREEN */
	wattrset(stdscr, COLOR_PAIR(WHITEONBLUE) | WA_BOLD);
	wclrscr(stdscr);
	mvwaddstr(stdscr, 10, 10, "Simple color menu");
	touchwin(stdscr);
	wrefresh(stdscr);

	/* ACQUIRE THE USER'S CHOICE */
	choiceno = runMenu(stdscr, 16, 40, 2, 20, choices);

	mvwaddstr(stdscr, 22, 0, "Hit any key to finish==>");
	touchwin(stdscr);
	wrefresh(stdscr);
	getch();

	endwin();		/* end ncurses */

	printf("\n\nYou chose item %d, %s\n", choiceno, choices[choiceno]);
	return(0);
	}

Compile and run the preceding program with this script:

rm -f ./a.out
gcc -Wall -lcurses -lmenu -lform picklist.c
./a.out

You'll notice the preceding is very much like the menu subroutines discussed in last month's Linux Productivity Magazine, with the exception that they're made scrollable with the set_menu_format() routine.

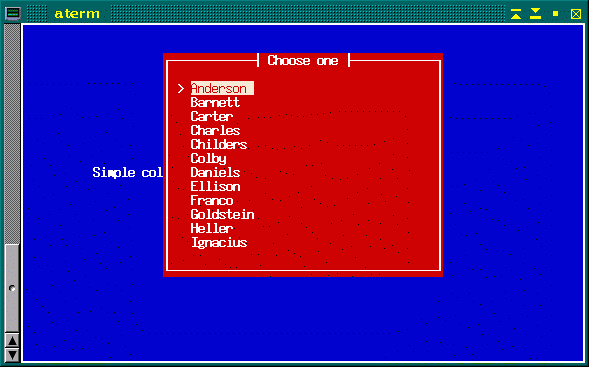

The preceding code produces the following picklist:

Output of simple picklist

A simple picklist is great for a quickie 1 day app, but it's not maintainable or reusable. If you anticipate frequent changes or re-uses, you owe it to yourself to create a data driven picklist...
Steve Litt is the author of the Universal Troubleshooting Process Courseware.   Steve can be reached at his email address.

Data Driven Picklist

By Steve Litt
This data driven picklist program places all picklist behavior inside a single PICKINFO data structure. That makes it incredibly adaptable, because behavior is changed in data, not in code. It wouldn't be particularly difficult to modify this program to read the picklist's entire configuration from a configuration file, thus freeing program modification from the necessity of recompilation, enabling end users to change the look and feel.

Compile and run the data driven picklist program with this script:

rm -f ./a.out
gcc -Wall -lcurses -lmenu -lform picklist.c
./a.out


Using this data file, the data driven picklist program produces the following output:

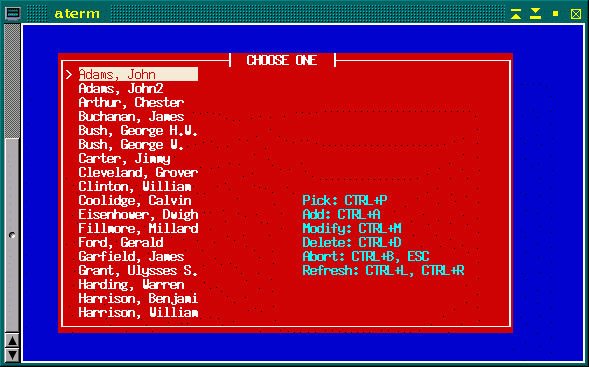

Output of data driven picklist

The placement of program behavior inside of data structures is called Data Driven Design. Data Driven Design yields the ultimately configurable, maintainable and reusable code. Data Driven Design isn't for everyone -- it usually requires more lines of code and more design, coding and debugging time. If you need to whomp out a 1 day app, go functional decomposition or a partial Data Driven Design. On the other hand, if you're creating a tool to save time and effort from now into the future, Data Driven Design is the way to go.

This program was designed around a data structure containing "everything you ever wanted to know about a picklist but were afraid to ask. Let's start with the #defines, typedefs and enums:

/* #DEFINES AND ENUMS {{{ */
#define WHITEONRED 1
#define WHITEONBLUE 2
#define WHITEONBLACK 3
#define BLACKONWHITE 4
#define REDONWHITE 5
#define GREENONBLACK 6
#define CYANONRED 7


enum KBDKEYS {ENTER, CTRL_A, CTRL_B, CTRL_C, CTRL_D, CTRL_E,
	CTRL_F, CTRL_G, CTRL_H, CTRL_I, CTRL_J, CTRL_K,
	CTRL_L, CTRL_M, CTRL_N, CTRL_O, CTRL_P, CTRL_Q,
	CTRL_R, CTRL_S, CTRL_T, CTRL_U, CTRL_V, CTRL_W,
	CTRL_X, CTRL_Y, CTRL_Z, ESC, BACKSPACE, TAB, NULLCHAR};

typedef enum KBDKEYS KBDKEYS8[8];

enum ACTIONTYPES {PICK, ADD, CHANGE, DELETE, BAIL, REFRESH, NULLACTIONTYPE};
/* #DEFINES AND ENUMS }}} */

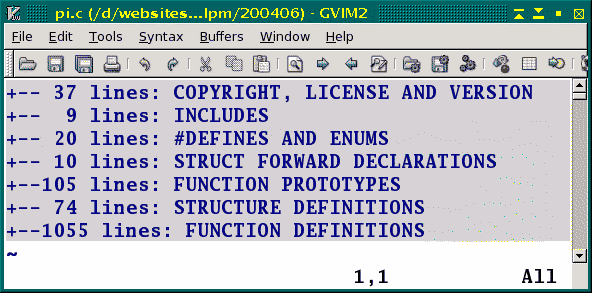

Did you notice the {{{ and }}} markers in the comments? Those are Vim folding markers, enabling the entire program to be seen as an outline whose elements can be expanded and collapsed. When programs get over 600 lines, this is an excellent idea, always assuming you're using Vim as your editor. To read all about it, issue the following command from within Vim:
:h fold
One thing should be said right now -- this program has some design and philosophical errors. Turning it into a true data driven tool, in which all picklist configuration could be accomplished in configuration files rather than code changes, would require some more work. For instance, color pair constants shouldn't have been defined by color name, but instead by function name -- BORDERPAIR, UIPAIR, UIHIGHLIGHTPAIR and the like. And they should be variables so that they don't conflict with the application's color pair constants. The picklist tool would then contain a color string to color constant translation table so that string representations of a color, read in from a config file, could be converted to the number Curses uses for that color.

Because Curses takes color pairs only from 0 to 15, perhaps the tool should have an array of 16 ints, and subroutines to check for the next one and reserve it, and another to look up by (variable) number.

As mentioned, in order to get this magazine out on time, I did not do a complete job of making it data driven.

We start with the KBDKEYS enum we give names to all the control keys likely to be pressed during operation of the picklist. NULLCHAR is an end marker. We typedef an array of 8 such keyboard keys. This array of 8 will be used to house several keystrokes all leading to the same action.

Finally, we define ACTIONTYPES as PICK, ADD, CHANGE, DELETE, BAIL, or REFRESH, with NULLACTIONTYPE tacked on as an end marker.

The top level of our data structure is the PICKINFO struct, as follows:

struct PICKINFO						/*{{{*/
	{
	struct ROWSINFO *rowsInfo;
	struct KEYSTROKES *keystrokes;
	struct SUBROUTINES *subroutines;
	struct WINDOWS *windows;
	char ** actionNames;
	}; /*}}}*/

The following is a short description of the contained information:

PICKINFO element
 What's stored in the element
ROWSINFO
 Pointer to a struct ROWSINFO, which contains everything about the rows of data presented for possible selection.
KEYSTROKES
 Pointer to a struct KEYSTROKES, which contains everything about possible keystrokes, including keystroke ascii codes, string representation of keystroke names, and for each possible action of the picklist, the keystrokes that trigger such action.
SUBROUTINES
 A pointer to the subroutines to be run upon the ADD, CHANGE or DELETE actions -- typically a form. Note that a picklist could also simply return the action chosen by the user, in which case the next loop iteration would run the form on the record selected by the user.
WINDOWS
 The layout of the picklist -- its height, width, as well as the dimensions of the surrounding border window. Color scheme, and prompts location.
actionNames
 Strings representing PICK, ADD, CHANGE, DELETE, BAIL or REFRESH.

The WINDOWS Structure

The WINDOWS * element is simplest because it contains no substructures, but simply identifies a bunch of properties about the Border Window and the UI Window, so we'll start with that. For the Border and UI windows, the following information is contained:
For the prompts (eg. Press Ctrl+D to delete), it contains the following infomation
The WINDOWS structure also contains the following information:
struct WINDOWS						/*{{{*/
	{
	int uiTopLeftY;
	int uiTopLeftX;
	int ui_height;
	int ui_width;
	int ui_color_combo_constant;
	int ui_attrib;
	int ui_highlight_color_combo_constant;
	int ui_highlight_attrib;
	int borderTopLeftY;
	int borderTopLeftX;
	int border_height;
	int border_width;
	int border_color_combo_constant;
	int border_attrib;
	char *title;
	int firstPromptY;
	int firstPromptX;
	int prompt_color_combo_constant;
	int prompt_attrib;
	}; /*}}}*/

The KEYSTROKES Structure

The KEYSTROKES structure is either very simple or very complex, depending on how you view abstraction. It has only three elements, making it very simple. But one element is an array of char pointers, and another is an array of arrays of enum KBDKEYS.

struct KEYSTROKES					/*{{{*/
	{
	char * keySymbols[NULLCHAR + 1];
	char keyChars[NULLCHAR + 1];
	KBDKEYS8 action_keys[NULLACTIONTYPE];
	}; /*}}}*/

The keySymbols element is an array of pointers. The array elements, which are pointers, are allocated in the declaration. But the pointer for each element must be allocated with malloc() and freed with free(). The action_keys element is entirely allocated by the declaration. It is an array of arrays of enum KBDKEYS used to map user keystrokes to various actions.

All of the elements of the KEYSTROKES pointer are manipulated by specialized routines.

The ROWSINFO Structure

The ROWSINFO structure holds all the application data scrolled in the picklist. It looks like this:

struct ROWSINFO						/*{{{*/
	{
	long numrows; /* number of rows currently consumed */
	long maxrows; /* maximum rows in array */
	long increase_maxrows_by; /* number of rows to add to array when full */
	struct ROWNODE *headNode;
	struct ROWINFO **rows;
	}; /*}}}*/

This is very much a state variable. Rows of data are dynamically allocated increase_maxrows_by at a time. numrows and maxrows both start out zero. numrows increases by one for each row pushed into the picklist. maxrows is the allocated length of the rows array. When one more row would exceed that size, rows is reallocated to a size increase_maxrows_by larger than the current size.

Each row must be allocated a ROWINFO structure. Notice that ROWINFO is singular, ROWSINFO is plural. The ROWINFO (singular) struct looks like this:

struct ROWINFO						/*{{{*/
	{
	char *displayString;
	char *sortString;
	bool sortPointsToDisplay;
	char *uid;
	}; /*}}}*/

The ROWINFO structure consists of 3 strings to allocate and a boolean. If the boolean is true, it tells the application that it should use displayString in lieu of sortString.

To make this simpler, both the ROWINFO and ROWSINFO structs are manipulated by their own functions:

struct
 Manipulating function
 Description
struct ROWINFO
struct ROWINFO * newRowInfo(
    const char *displayString,
    const char *sortString,
    const bool sortPointsToDisplay,
    const char *uid
        );
 This allocates all storage for a new row. First it allocates storage for the struct ROWINFO itself, and then it allocates strings equal to displayString, sortString and uid, leaving the original arguments untouched and unassigned. If sortPointsToDisplay=True, it does not make an allocated copy of sortString.

void freeRowInfo(struct ROWINFO * rowInfo);
 This frees the displayString and uid, pointers, and also the , sortString pointer if sortPointsToDisplay=false. It then deallocates the struct ROWINFO itself.

void testRowInfo();
 This is a loop to repeatedly runs newRowInfo() and freeRowInfo() in order to detect memory leak and other problems. Ideally, you should look at the memory display of the Linux top command. If memory usage continuously rises, you have a memory leak.



struct ROWSINFO
struct ROWSINFO * newRowsInfo(long increase_maxrows_by);
 This allocates the ROWSINFO structure and initializes rowsInfo, maxrows and increase_maxrows_by. It does not allocate storage for rows and headNode, but instead sets them to NULL.

void freeRowsInfo(struct ROWSINFO *rowsInfo);
 This deallocates EVERYTHING in the structure ROWSINFO, including any allocated rows. At this time it doesn't deallocate any ROWNODE structures because those structures aren't yet incorporated into the program, but exist as stub.

void testRowInfo();
 This operates a loop that repeatedly:
  1. Calls newRowsInfo to instantiate a ROWSINFO pointer
  2. Repeatedly calls newRow to insert 30 rows into the  ROWINFO record
  3. Calls freeRowsInfo to free all rows and the ROWSINFO pointer itself.
This function is used to test for memory leak.

void addRow(
	struct ROWSINFO * rowsInfo,
	const char *displayString,
	const char *sortString,
	const bool sortPointsToDisplay,
	const char *uid
	);
 This calls newRow to allocate and configure a new ROWINFO pointer, and also updates the numrows, maxrows

In this particular app, the picklist's appearance is input to the data structure with code, such as the setUpWindows(), buildKeyDefaults(), and assignDefaultActionKeys() functions. With a little more work it could come straight from a config file, eliminating the need for programming and recompilation. In this app, the data to be picked DOES come from a file, in this case a sorted file of strings. If it weren't sorted correctly, it could be sorted with qsort(), or each element could be inserted in a tree headed by pickInfo->rowsInfo->headNode, such that they're sorted upon insertion. This works in cases where the items to be sorted are not in an array of like-sized elements.

The routine to actually run the menu closely resembles that of its hardcoded brethren, except that it uses data from the PICKINFO struct instead of arguments or hardcodes:

int runMenu(						/*{{{*/
		struct PICKINFO *pickInfo,
		WINDOW *wParent
		)
	{
	int c;			/* key pressed */
	ITEM **my_items;	/* list of items on this menu */
	MENU *my_menu;		/* the menu structure */

	WINDOW *wUI;		/* window on which the user
					interacts with the menu */
	WINDOW *wBorder;	/* window containing the wUI window
					and the border and title */

        int n_choices;		/* number of items on menu */
        int ssChoice;		/* subscript to run around the choices array */
	int my_choice = -1;	/* the zero based numeric user choice */
	int y;
	enum ACTIONTYPES actiontype;


	/* CALCULATE NUMBER OF MENU CHOICES */
	n_choices = pickInfo->rowsInfo->numrows;

	/* ALLOCATE ITEM ARRAY AND INDIVIDUAL ITEMS */
        my_items = (ITEM **)calloc(n_choices + 1, sizeof(ITEM *));
        for(ssChoice = 0; ssChoice < n_choices; ++ssChoice)
		{
                my_items[ssChoice] = new_item(
			pickInfo->rowsInfo->rows[ssChoice]->displayString, NULL);
		}
	my_items[n_choices] = (ITEM *)NULL;

	/* CREATE THE MENU STRUCTURE */
	my_menu = new_menu((ITEM **)my_items);

	/* PUT > TO THE LEFT OF HIGHLIGHTED ITEM */
	set_menu_mark(my_menu, "> ");

	/* SET UP WINDOW FOR MENU'S BORDER */
	wBorder = newwin(
			pickInfo->windows->border_height,
			pickInfo->windows->border_width,
			pickInfo->windows->borderTopLeftY,
			pickInfo->windows->borderTopLeftX);
	wattrset(
		wBorder,
		COLOR_PAIR(pickInfo->windows->border_color_combo_constant) |
		pickInfo->windows->border_attrib);
	wclrscr(wBorder);
	box(wBorder, 0, 0);
	wCenterTitle(wBorder, pickInfo->windows->title);

	/* SET UP WINDOW FOR THE MENU'S USER INTERFACE */
	wUI = derwin(
		wBorder,
		pickInfo->windows->ui_height,
		pickInfo->windows->ui_width,
		pickInfo->windows->uiTopLeftY,
		pickInfo->windows->uiTopLeftX
		);

	/* ASSOCIATE THESE WINDOWS WITH THE MENU */
	set_menu_win(my_menu, wBorder);
	set_menu_sub(my_menu, wUI);
	set_menu_format(my_menu, pickInfo->windows->ui_height, 1);

	/* MATCH MENU'S COLORS TO THAT OF ITS WINDOWS */
	set_menu_fore(
		my_menu,
		COLOR_PAIR(pickInfo->windows->ui_highlight_color_combo_constant) |
		pickInfo->windows->ui_highlight_attrib
		);
	set_menu_back(
		my_menu,
		COLOR_PAIR(pickInfo->windows->ui_color_combo_constant) |
		pickInfo->windows->ui_attrib
		);

	/* SET UP AN ENVIRONMENT CONDUCIVE TO MENUING */
	keypad(wUI, TRUE);	/* enable detection of function keys */
	noecho();		/* user keystrokes don't echo */
	curs_set(0);		/* make cursor invisible */
	menu_opts_on(my_menu, O_SHOWMATCH);
	menu_opts_on(my_menu, O_IGNORECASE);
	menu_opts_on(my_menu, O_NONCYCLIC);

	/* DISPLAY THE MENU */
	post_menu(my_menu);

	/* DISPLAY THE PROMPTS */
	wattrset(
		wBorder,
		COLOR_PAIR(pickInfo->windows->prompt_color_combo_constant) |
		pickInfo->windows->prompt_attrib
		);
	y = pickInfo->windows->firstPromptY;
	for(actiontype=PICK; actiontype < NULLACTIONTYPE; actiontype++)
		{
		enum KBDKEYS *kbdkeys = pickInfo->keystrokes->action_keys[actiontype];
		if(kbdkeys[0] != NULLCHAR)
			{
			int ssKeySymbol;
			mvwaddstr(
				wBorder,
				y,
				pickInfo->windows->firstPromptX,
				pickInfo->actionNames[actiontype]
				);
			waddstr(wBorder, ": ");
			for(ssKeySymbol = 0; ssKeySymbol < 7; ssKeySymbol++)
				{
				enum KBDKEYS thisKey = kbdkeys[ssKeySymbol];
				if(thisKey == NULLCHAR)
					break;
				else
					{
					char *pc;

					if(ssKeySymbol > 0) waddstr(wBorder, ", ");
					pc = pickInfo->keystrokes->keySymbols[thisKey];
					waddstr(wBorder, pc);
					}
				}
			y++;

			}
		}
	wattrset(
		wBorder,
		COLOR_PAIR(pickInfo->windows->border_color_combo_constant) |
		pickInfo->windows->border_attrib
		);

	/* REFRESH THE BORDER WINDOW PRIOR TO ACCEPTING USER INTERACTION */
	touchwin(wBorder);
	wrefresh(wBorder);

	/* HANDLE USER KEYSTROKES */
	while(my_choice == -1)
		{
		touchwin(wUI);	/* refresh prior to getch() */
		wrefresh(wUI); 	/* refresh prior to getch() */
		c = getch();
		switch(c)
			{
			case KEY_DOWN:
				menu_driver(my_menu, REQ_DOWN_ITEM);
				break;
			case KEY_UP:
				menu_driver(my_menu, REQ_UP_ITEM);
				break;
			case KEY_NPAGE:
				menu_driver(my_menu, REQ_SCR_DPAGE);
				break;
			case KEY_PPAGE:
				menu_driver(my_menu, REQ_SCR_UPAGE);
				break;
			case 10:	/* Enter */
				my_choice = item_index(current_item(my_menu));

				/* RESET CURSOR IN CASE MORE SELECTION IS NECESSARY */
				pos_menu_cursor(my_menu);
				break;
			}
		}

	/* FREE ALL ALLOCATED MENU AND ITEM RESOURCES */
	unpost_menu(my_menu);
        for(ssChoice = 0; ssChoice < n_choices; ++ssChoice)
                free_item(my_items[ssChoice]);
	free_menu(my_menu);

	/* DESTROY MENU WINDOW AND BORDER WINDOWS */
	delwin(wUI);
	delwin(wBorder);

	/* UNDO MENU SPECIFIC ENVIRONMENT */
	curs_set(1);			/* make cursor visible again */

	/* REPAINT THE CALLING SCREEN IN PREPARATION FOR RETURN */
	touchwin(wParent);
	wrefresh(wParent);

	/* RETURN THE ZERO BASED NUMERIC USER CHOICE */
	return(my_choice);
	} /*}}}*/

As mentioned previously, this is not a completely data driven design, in that it does not facilitate a picklist completely defined in a config file. The problem with #defined color pairs was already mentioned -- these should be in data. Also, notice that in the subroutine above, set_menu_mark() strongarms the mark to ">" rather than obtaining it from data (it's not included in the data). This magazine is very late, so I didn't want to take the time to get this program perfect.

What happens when somebody improves this program to perfection? At that point it becomes a do-anything picklist tool. Combine it with a data-driven do-anything menu tool, and a data-driven do-anything form tool (together with data driven field tools for the form), and an SQL interface, and you have the makings for some extremely fast development. If done right, the vast majority of the app could be written in a configuration file.

In my opinion, such a configuration file would best be implemented as a tab indented outline. Tab indented outlines are intuitive to humans, and easily manipulated by computer algorithms. Next month's Linux Productivity Magazine features a tool called Node.pm, which makes processing and manipulation of tab indented outlines trivial.

Imagine getting the specifications for a new application, spending a few hours with an outline processor, and then giving the client the specified app (or a close approximation thereof). With data driven menus, picklists, forms, formfields and SQL interface it's entirely possible.

One more point. Looking at the PICKINFO structure, do you notice that for the most part it's generic to the concept of a picklist, with very little dependency on Curses. This makes it feasible to have one configuration file service both Curses based picklists and QT or GTK based picklists. If you've ever admired programmers creating the ultimate level of modularity, consider they might simply be performing Data Driven Design.
Steve Litt is the author of the Universal Troubleshooting Process Courseware.   Steve can be reached at his email address.

Form Hello World

By Steve Litt
The simplest possible form is one field taking keystrokes, and exiting when you press the "accept" key, which we'll define as F9. For this and all following forms, you'll see the best results when looking it on a genuine character mode terminal (Ctrl+Alt+F2, etc), rather than a GUI terminal emulator. Specifically, many GUI terminals don't support blink, so the cursor ends up looking like just space on the form.

The gnome-terminal GUI terminal does display blink. The following exercises use F9 as the "accept key" because gnome-terminal does nothing special with that key. If it had been F10, gnome-terminal would have intercepted the keystroke and displayed a menu in response.

Throughout the exercises in this magazine you'll see that different GUI terminals display slightly different. When in doubt, view the output on a genuine character terminal (Ctrl+Alt+F2, etc). We'll try to make sure that they all look good on genuine character terminals.

The following code displays a single field in reverse video, into which you can input keystrokes.

#include <form.h>

int main()
	{
	FIELD *field[2];
	FORM  *myForm;
	int ch;

	initscr();		/* start curses */
	cbreak();
	noecho();		/* don't echo keystrokes */
	keypad(stdscr, TRUE);	/* accept func keys */

	/* CREATE FIELD ARRAY */
	field[0] = new_field
		(
		1,	/* height in rows */
		10,	/* width in characters */
		4,	/* y position in rows, 0 based */
		17,	/* x position in columns, 0 based */
		0,	/* number of offscreen rows */
		0	/* number of working buffers */
		);
	field[1] = NULL;

	/* SET FIELD OPTIONS */
	set_field_back(field[0], WA_REVERSE);	/* field has reverse video text */
	field_opts_off(field[0], O_AUTOSKIP);	/* don't walk off end of field */

	/* CREATE FORM */
	myForm = new_form(field);
	post_form(myForm);
	mvprintw(4, 10, "Field: ");
	refresh();

	/* KEYSTROKE ACQUISITION LOOP */
	while((ch = getch()) != KEY_F(9))	/* F9 is accept keystroke */
		{
		form_driver(myForm, ch);
		}

	/* UNPOST FORM, FREE MEMORY */
	unpost_form(myForm);
	free_form(myForm);
	free_field(field[0]);
	free_field(field[1]);
	free_field(field[2]);

	endwin();
	return 0;
	}
Compile the preceding code like this:
rm -f ./a.out
gcc -Wall -lncurses -lform form.c
./a.out
When you run the program, the result looks like this:

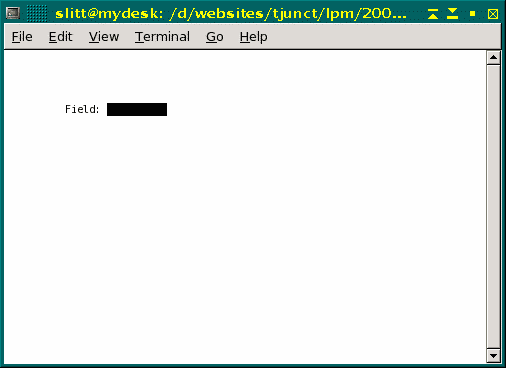

Output of the Hello World form program

The preceding outputs a form with a single prompt and a single reverse video field. Try typing into the field. Then press the F9 key to exit the form.
Steve Litt is the author of the Universal Troubleshooting Process Courseware.   Steve can be reached at his email address.

A Trivial Input Form

By Steve Litt
The form in the preceding article does nothing except prove the concept of Curses forms. In this article we'll create a form with three fields, and provide navigation between them. Paste the following code into an editor, and then compile and run:

#include <form.h>

int main()
	{
	FIELD *field[4];
	FORM  *myForm;
	int ch;

	initscr();		/* start curses */
	cbreak();
	noecho();		/* don't echo keystrokes */
	keypad(stdscr, TRUE);	/* accept func keys */

	/* CREATE FIELD ARRAY */
	field[0] = new_field
		(
		1,	/* height in rows */
		10,	/* width in characters */
		4,	/* y position in rows, 0 based */
		22,	/* x position in columns, 0 based */
		0,	/* number of offscreen rows */
		0	/* number of working buffers */
		);
	field[1] = new_field(1, 10, 6, 22, 0, 0);
	field[2] = new_field(1, 10, 8, 22, 0, 0);
	field[3] = NULL;

	/* SET FIELD OPTIONS */
	set_field_back(field[0], WA_REVERSE);	/* field has reverse video text */
	field_opts_off(field[0], O_AUTOSKIP);	/* don't walk off end of field */

	set_field_back(field[1], WA_REVERSE);
	field_opts_off(field[1], O_AUTOSKIP);

	set_field_back(field[2], WA_REVERSE);
	field_opts_off(field[2], O_AUTOSKIP);

	/* CREATE FORM */
	myForm = new_form(field);
	post_form(myForm);
	mvprintw(4, 10, "First name: ");
	mvprintw(6, 10, "Last name : ");
	mvprintw(8, 10, "Job       : ");
	form_driver(myForm, REQ_FIRST_FIELD);	/* Put cursor in first field */
	refresh();

	/* KEYSTROKE ACQUISITION LOOP */
	while((ch = getch()) != KEY_F(9))	/* F9 is accept keystroke */
		{
		switch(ch)
			{
			case 9:  /* tab key */
			case 10: /* enter key */
			case KEY_DOWN:
				form_driver(myForm, REQ_NEXT_FIELD);
				form_driver(myForm, REQ_END_LINE);
				break;
			case KEY_BTAB:
			case KEY_UP:
				form_driver(myForm, REQ_PREV_FIELD);
				form_driver(myForm, REQ_END_LINE);
				break;
			default:
				form_driver(myForm, ch);
				break;
			}
		}

	/* UNPOST FORM, FREE MEMORY */
	unpost_form(myForm);
	free_form(myForm);
	free_field(field[0]);
	free_field(field[1]);
	free_field(field[2]);

	endwin();
	return 0;
	}

The preceding creates a form with three prompts and three fields. You can navigate between the fields using tab, or the  up and down arrow keys. Once again, F9 is the accept key, terminating the form.

Compile the preceding code like this:
rm -f ./a.out
gcc -Wall -lncurses -lform form.c
./a.out
The result is as follows:
Output of the Trivial Form

The lesser length of the first field is an artifact -- the cursor shows up as not part of the field.

This resembles a real form, but you'll notice several deficiencies:
In the next article, you'll see these deficiencies corrected.
Steve Litt is the author of Rapid Learning: Secret Weapon of the Successful Technologist.   Steve can be reached at his email address.

A Practical Input Form

By Steve Litt
  The form in the preceding article had several deficiencies:
In this article we cure all four of these deficiencies. We return the user's choice by reading the contents of the array of fields. We return whether the user chose to accept or bail by the function return of the runForm() subroutine. We gave the user the choice of accepting or bailing by adding provisions within the switch statement in the keystroke acquisition loop for Ctrl+A (accept) and Ctrl-Q (quit, bail). Actually, Ctrl+A fulfils the loop's stop condition, and ACCEPT is the default.

The switch statement in the loop also has provisions for the backspace and delete keys. Backspace deletes the character to the left of the cursor and pulls everything that was to the right of that, to the left. Delete deletes the character under the cursor and pulls everything to the right of that left. Note that if you use the Del key on the keypad, numlocks must be off.

The switch statement has a case for the Insert key. That case toggles the insert status of the form. In insert mode, when you type a character it goes at the cursor, and pushes what was under the cursor, and everything to the right of that, one character farther right. In overwrite mode, the character typed simply replaces what was at the cursor.

Note also that this version allows fields to be pre-filled. Here's the code:

#include <form.h>
#include <stdlib.h>	/* accommodate malloc() */
#include <string.h>	/* accommodate string functions */
#include <assert.h>	/* accommodate assert() */

/* DEFINE A COUPLE ENUMERATIONS */
enum RESULTTYPES {ACCEPT, BAIL};
enum INSERT_MODES {INSERT, OVERLAY};


/* CREATE A FUNCTION TO RUN A FORM */
enum RESULTTYPES runForm(FIELD ** fields)
	{
	FORM  *myForm;
	int ch;
	enum RESULTTYPES result;
	enum INSERT_MODES insert_mode = OVERLAY;
	int fieldNo;


	initscr();		/* start curses */
	cbreak();
	raw();
	noecho();		/* don't echo keystrokes */
	keypad(stdscr, TRUE);	/* accept func keys */

	/* CREATE FORM */
	myForm = new_form(fields);
	post_form(myForm);
	mvprintw(4, 10, "First name: ");
	mvprintw(6, 10, "Last name : ");
	mvprintw(8, 10, "Job       : ");
	mvprintw(20, 10, "Press Ctrl+A to Accept");
	mvprintw(21, 10, "Press Ctrl+Q to Quit");
	mvprintw(22, 10, "Press INSERT to toggle insert mode");
	form_driver(myForm, (insert_mode==INSERT ? REQ_INS_MODE : REQ_OVL_MODE));
	form_driver(myForm, REQ_FIRST_FIELD);	/* Put cursor in first field */
	refresh();

	/* SET FIELD OPTIONS, TURN OFF FIELD BLANKING*/
	for(fieldNo=0; fields[fieldNo] != NULL; fieldNo++)
		{
		field_opts_off(fields[fieldNo], O_BLANK);
		}

	/* KEYSTROKE ACQUISITION LOOP */
	result = ACCEPT;			/* assume user acceptance */
	while((ch = getch()) != 1)		/* Ctrl+A is accept keystroke */
		{
		switch(ch)
			{
			case 9:  /* tab key */
			case 10: /* enter key */
			case KEY_DOWN:
				form_driver(myForm, REQ_NEXT_FIELD);
				form_driver(myForm, REQ_END_LINE);
				form_driver(myForm, REQ_BEG_LINE);
				break;
			case KEY_BTAB:
			case KEY_UP:
				form_driver(myForm, REQ_PREV_FIELD);
				form_driver(myForm, REQ_END_LINE);
				form_driver(myForm, REQ_BEG_LINE);
				break;
			case KEY_LEFT:
				form_driver(myForm, REQ_LEFT_CHAR);
				break;
			case KEY_RIGHT:
				form_driver(myForm, REQ_RIGHT_CHAR);
				break;
			case 127:
				form_driver(myForm, REQ_LEFT_CHAR);
				form_driver(myForm, REQ_DEL_CHAR);
				break;
			case KEY_IC:

				mvprintw(22, 10, "INS HIT");

				if(insert_mode == INSERT)
					{
					insert_mode = OVERLAY;
					form_driver(myForm, REQ_OVL_MODE);
					}
				else
					{
					insert_mode = INSERT;
					form_driver(myForm, REQ_INS_MODE);
					}
				break;
			case KEY_DC:
				form_driver(myForm, REQ_DEL_CHAR);
				break;
			case 27:	/* use pressed Esc */
			case 17:	/* use pressed Ctrl+Q */
			case 2:	/* use pressed Ctrl+B */
				result = BAIL;
				break;
			default:
				form_driver(myForm, ch);
				break;
			}
		touchwin(stdscr);
		wrefresh(stdscr);
		if(result == BAIL) break;
		}

	/* GUARANTEE LAST ENTRY IS RECORDED */
	form_driver(myForm, REQ_END_LINE);

	/* UNPOST FORM, FREE MEMORY */
	unpost_form(myForm);
	free_form(myForm);

	/* END CURSES */
	endwin();
	return(result);
	}

int main(int argc, char *argv[])
	{
	FIELD *fields[4];
	int fieldNo;
	enum RESULTTYPES result;

	/* CREATE FIELD ARRAY */
	fields[0] = new_field
		(
		1,	/* height in rows */
		10,	/* width in characters */
		4,	/* y position in rows, 0 based */
		22,	/* x position in columns, 0 based */
		0,	/* number of offscreen rows */
		0	/* number of working buffers */
		);
	fields[1] = new_field(1, 10, 6, 22, 0, 0);
	fields[2] = new_field(1, 16, 8, 22, 0, 0);
	fields[3] = NULL;

	/* SET FIELD OPTIONS */
	set_field_back(fields[0], WA_REVERSE);	/* field has reverse video text */
	field_opts_off(fields[0], O_AUTOSKIP);	/* don't walk off end of field */

	set_field_back(fields[1], WA_REVERSE);
	field_opts_off(fields[1], O_AUTOSKIP);

	set_field_back(fields[2], WA_REVERSE);
	field_opts_off(fields[2], O_AUTOSKIP);

	/* PRESET FIELD VALUES */
	set_field_buffer(fields[2], 0, "programmer");

	/* RUN THE FORM */
	result = runForm(fields);

	/* PRINT THE USER INPUT */
	printf("\n\n");
	for(fieldNo=0; fields[fieldNo] != NULL; fieldNo++)
		{
		printf("Field %d is >%s<\n",
			fieldNo,
			field_buffer(fields[fieldNo], 0));
		}
	printf("User elected to %s\n", (result == ACCEPT ? "ACCEPT" : "BAIL"));

	/* DELETE THE FIELDS */
	for(fieldNo=0; fields[fieldNo] != NULL; fieldNo++)
		{
		free_field(fields[fieldNo]);
		}

	return(0);
	}

Once again, compile it like this:
rm -f ./a.out
gcc -Wall -lncurses -lform form.c
./a.out
The result is as follows:

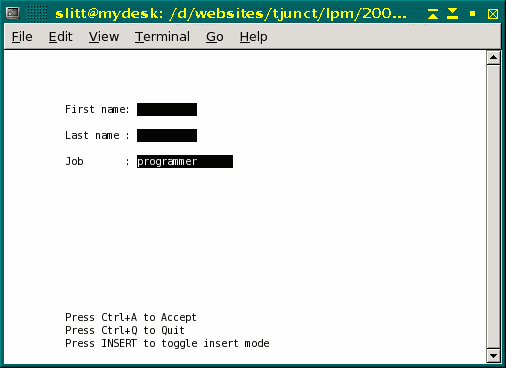

Output of the practical form

Steve Litt is the author of Samba Unleashed.   Steve can be reached at his email address.

A Maze Runner Program

By Steve Litt

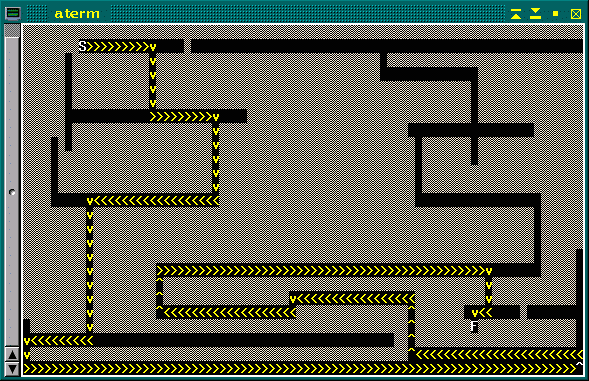

Using Turbo Pascal, I wrote a maze runner program in 1986. The output was pretty easy in the days when all output was a memory write to segment B800. When I tried to rewrite the program as a C/Linux program, everything translated except the video output. What to do?

Curses, saved again! I used ncurses. The following is the maze runner program:

#include <ncurses.h>
#include <stdlib.h> /* malloc */
#include <string.h> /* strleng */
#include <assert.h> /* assert */
#include <unistd.h> /* sleep, usleep */
#include <ctype.h>  /* toupper */

#define NUMCOLUMNS 80
#define NUMROWS 25

#define STARTCHAR 'S'
#define FINISHCHAR 'F'
#define DEADENDCHAR '.'
#define BLOCKREPRESENTATIVESTCHAR 'X'

#define YELLOWONBLUE 1
#define WHITEONBLUE 2
#define BLACKONWHITE 3
#define WHITEONBLACK 4
#define GREENONBLACK 5
#define YELLOWONBLACK 6
#define BLUEONBLACK 7
#define CYANONBLACK 8
#define REDONBLACK 9
#define MAGENTAONBLACK 10

typedef char LINE[NUMCOLUMNS+0];
typedef LINE SCREENCLONE[NUMROWS];

typedef struct
	{
	unsigned y;
	unsigned x;
	} POINT;

enum DIRECTION {RIGHT,UP,LEFT,DOWN};
#define DIRECTIONCHARS ">^<v"


SCREENCLONE scr;  /* GLOBAL COPY OF COMPUTER SCREEN */

struct pgm_info		/* INFO NECESSARY TO RUN THE PROGRAM */
	{
	char *mazefile;
	long usecSleep;
	bool stopAtEnd;
	SCREENCLONE *maze;
	POINT startyx;
	POINT finishyx;
	};

/*************************************************************
 * Clear the screen with the current background color and attrib
 *************************************************************/
void clrscr(void)
	{
	int y, x, maxy, maxx;
	getmaxyx(stdscr, maxy, maxx);
	for(y=0; y < maxy; y++)
		for(x=0; x < maxx; x++)
			mvaddch(y, x, ' ');
	}

/*************************************************************
 * Print usage statement
 *************************************************************/
void usage(const char * msg)
	{
	printf("\n\n%s\n", msg);
	printf("\n\nUsage is:\n");
	printf("\trunmaze mazefile microseconds\n");
	printf("\n\tThe microseconds argument is optional, and represents\n");
	printf("\tthe delay between maze movements. If this argument is\n");
	printf("\tnegative, the program waits for a keystroke at the end\n");
	printf("\tbefore terminating. If it's -1 it waits, but there is no\n");
	printf("\tintermovement delay.\n\n");
	printf("\tBe aware that on Intel machines delays cannot be cut as\n");
	printf("\tfine as microseconds, so in fact 1 and 500 produce\n");
	printf("\tidentical results.\n\n");

	printf("Aborting...\n\n");
	exit(1);
	}

/*************************************************************
 * Abnormally end the program. Doesn't call endwin(), so this
 * routine should be called only when ncurses is not running.
 *************************************************************/
void abortt(const char * msg)
	{
	printf("\n\nERROR: %s\n", msg);
	printf("ABORTING...");
	exit(1);
	}

/*************************************************************
 * Set all necessary program data based on argc and argv
 *************************************************************/
struct pgm_info *get_info(int argc, char *argv[])
	{
	FILE * fin;
	struct pgm_info *pinfo;
	int y, x;
	char *buf;

	/***** RETURN ON GROSS COMMAND LINE SYNTAX ERRORS *****/
	if(argc < 2) usage("Must have at least one argument\n");
	if(argc > 3) usage("Too many arguments\n");

	/***** ALLOCATE RESOURCES *****/
	buf = (char *) malloc(1000);
	assert(buf);

	pinfo = (struct pgm_info *) malloc(sizeof(struct pgm_info));
	assert(pinfo);

	pinfo->mazefile = (char *)malloc(strlen(argv[1]));
	assert(pinfo->mazefile);
	strcpy(pinfo->mazefile, argv[1]);

	pinfo->maze = (SCREENCLONE *)malloc(sizeof(SCREENCLONE));
	assert(pinfo->maze);

	/***** SET SPEED ACCORDING TO COMMAND LINE ARGS *****/
	pinfo->usecSleep = 0;
	pinfo->stopAtEnd = false;
	if(argc > 2)
		{
		pinfo->usecSleep = atol(argv[2]);
		if(pinfo->usecSleep < 0)
			{
			pinfo->stopAtEnd = true;
			if(pinfo->usecSleep == -1)
				{
				pinfo->usecSleep = 0;
				}
			pinfo->usecSleep *= -1;
			}

		}

	/***** BLANK OUT pinfo->maze *****/
	for(y=0; y < NUMROWS; y++)
		memset((*pinfo->maze)[y], ' ', NUMCOLUMNS);

	/***** READ MAZE FILE INTO pinfo->maze *****/
	/***** THE +2 IN READING INTO BUF IS TO ACCOMMODATE THE '\n' AND '\0' ****/
	fin = fopen(pinfo->mazefile, "r");
	if(!fin)
		{
		char msg[61];
		snprintf(msg, 60,
			"Could not open maze file %s for read: aborting!\n\n",
			pinfo->mazefile);
		usage(msg);
		}

	y=0;
	memset(buf, ' ', NUMCOLUMNS + 2);
	while(fgets(buf, NUMCOLUMNS + 2, fin))
		{
		for(x=0; x < NUMCOLUMNS + 2; x++)
			if(buf[x] < ' ')
				buf[x] = ' ';
		memcpy((*pinfo->maze)[y], buf, NUMCOLUMNS);
		memset(buf, ' ', NUMCOLUMNS + 2);
		if(++y >= NUMROWS) break;
		}
	fclose(fin);

	/***** FIND LOCATION OF START POINT *****/
	for(y=0; y < NUMROWS; y++)
		for(x=0; x < NUMCOLUMNS; x++)
			{
			if(toupper((*pinfo->maze)[y][x]) == STARTCHAR)
				{
				y+=999;
				x+=999;
				}
			}
	if(y < 9
